What Are the Key Components of a Rotary Dryer?

2023-04-17 17:48:48

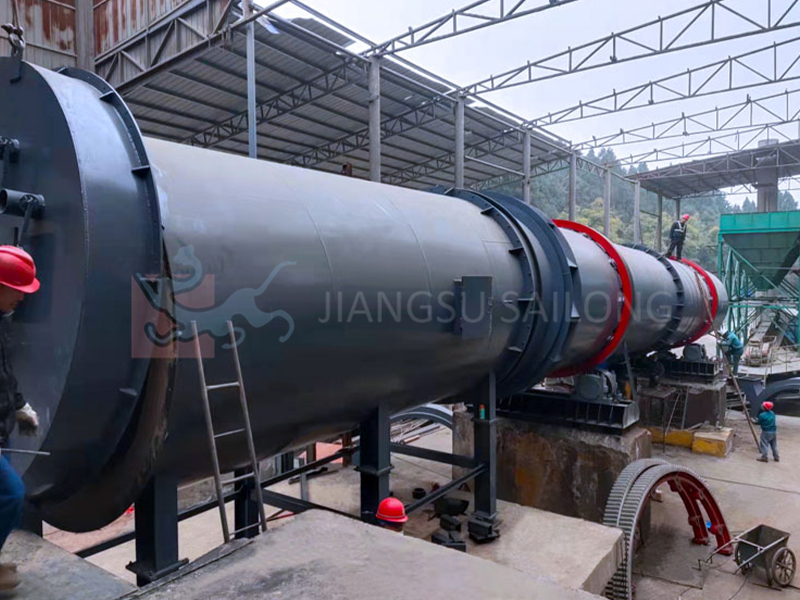

A Rotary Dryer, a core device for drying bulk materials, relies on the coordinated operation of multiple key components to achieve efficient moisture removal. These components are structured to support material conveying, heat transfer, and system stability, with each part playing a distinct and indispensable role in the drying process.

1. Rotating Drum (Shell)

The rotating drum is the central and most critical component of a rotary dryer, serving as the main chamber where material drying occurs. Typically made of high-temperature and corrosion-resistant metals (such as stainless steel or carbon steel with heat-resistant coatings), it has a cylindrical structure and is installed at a slight incline (usually 1°–5°) to the horizontal.

During operation, the drum rotates slowly (at a speed of 1–10 rpm). This rotation, combined with the drum’s incline, ensures that bulk materials (e.g., minerals, agricultural by-products) move continuously from the feed end to the discharge end. The drum’s inner surface may also be equipped with lifting flights (see Component 2) to enhance material turning and heat contact, directly determining the dryer’s capacity and drying uniformity.

2. Lifting Flights (Lifters)

Lifting flights are internal attachments welded or bolted to the inner wall of the rotating drum. They are designed in various shapes (e.g., rectangular, triangular, or spiral) based on the type of material (e.g., granular, powdery, or sticky) and drying requirements.

Their primary function is to "lift" materials as the drum rotates and then shower them down in a dispersed manner as the drum turns further. This action maximizes the contact area between the wet material and the hot drying medium (e.g., hot air, Flue Gas), accelerating heat transfer and moisture evaporation. For sticky materials, special anti-adhesion flights prevent material buildup on the drum wall, ensuring smooth material flow.

3. Drying Medium System

The drying medium system provides the heat required for moisture evaporation and consists of three sub-parts: a heat source, a fan, and a distribution structure.

- Heat source: Common options include coal-fired boilers, natural gas burners, electric heaters, or waste heat recovery devices. It heats air (or other media) to the required temperature (typically 100–800°C, depending on the material’s heat resistance).

- Fan: Responsible for forcing the hot drying medium into the drum (in parallel or counterflow to the material) and extracting moist air out of the system, maintaining a stable airflow inside the drum.

- Distribution structure: Located at the drum’s feed end, it ensures the hot medium is evenly distributed across the drum’s cross-section, avoiding local overheating or insufficient heating of materials.

4. Feed and Discharge Systems

These two systems manage the input and output of materials, ensuring a continuous and stable drying process.

- Feed system: Usually includes a hopper, a conveyor (e.g., SCRew conveyor, belt conveyor), and a feed chute. It controls the feed rate to match the drum’s processing capacity, preventing overloading (which causes poor drying) or underloading (which wastes energy). The feed chute is designed to guide materials smoothly into the drum without splashing or blocking.

- Discharge system: Positioned at the lower end of the inclined drum, it collects the dried material and transfers it to subsequent equipment (e.g., storage bins, conveyors). For fine or powdery materials, a cyclone separator may be integrated to prevent material loss with the exhaust air.

5. Support and Drive Systems

These systems ensure the rotating drum operates stably and reliably.

- Support system: Comprises roller supports and a thrust roller. The roller supports (usually 2–4 sets) bear the drum’s weight and allow it to rotate smoothly; the thrust roller limits axial movement of the drum, preventing it from sliding off the supports during operation.

- Drive system: Consists of a motor, a reducer, a pinion gear, and a girth gear (fixed around the drum’s middle or end). The motor’s power is transmitted to the girth gear via the reducer and pinion, driving the drum to rotate at a controlled, low speed. A variable-speed drive may also be included to adjust the rotation speed based on material moisture content and drying efficiency.

6. Exhaust Gas Treatment System

After passing through the drum, the drying medium becomes moist air containing dust and volatile substances. The exhaust gas treatment system purifies this air before discharge, complying with environmental regulations and protecting equipment.

Key components here include cyclone separators (to remove large dust particles), bag filters (for fine dust), and sometimes scrubbers (to absorb harmful gases, if the material contains volatile pollutants). This system not only reduces air pollution but also recovers valuable fine materials, improving resource utilization.

In summary, these six key components work together to enable the rotary dryer to efficiently, stably, and environmentally dry bulk materials. The design and performance of each component directly influence the dryer’s overall efficiency, drying quality, and operational lifespan.
