Structural composition

• Cylinder:

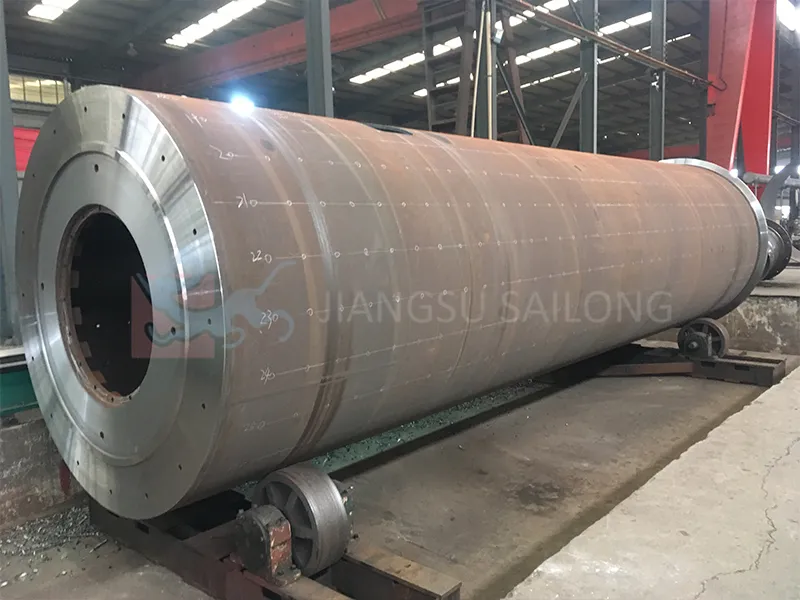

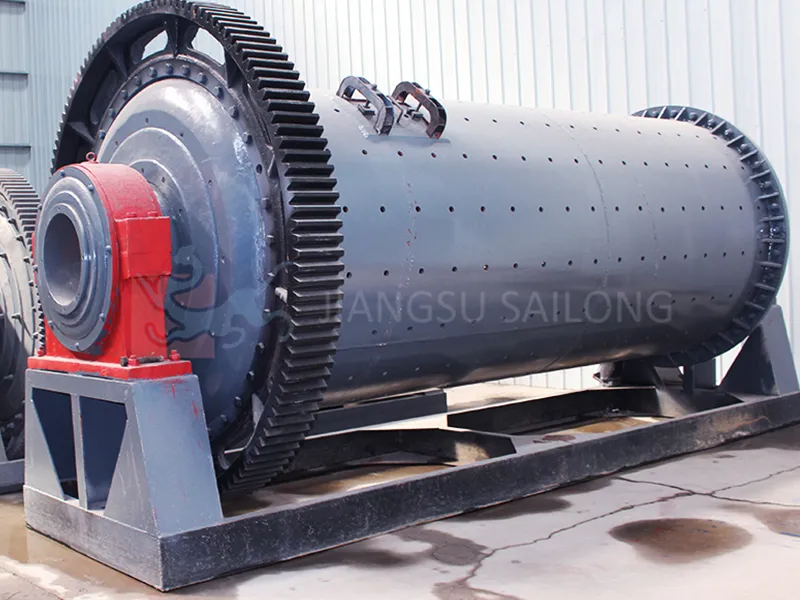

Made of high-quality steel plates rolled and welded, it is the main part of the Ball Mill, with grinding media (steel balls or steel segments) inside. The inner wall of the cylinder is usually equipped with a wear-resistant lining to protect the cylinder and improve grinding efficiency.

• Feeding device:

used to evenly feed the material into the cylinder of the ball mill. Common feeding devices include SCRew feeders, belt conveyors, etc.

• Discharging device:

at one or both ends of the cylinder, used to discharge the ground material. The discharging device is usually equipped with a screen or grading device to control the particle size of the discharging material.

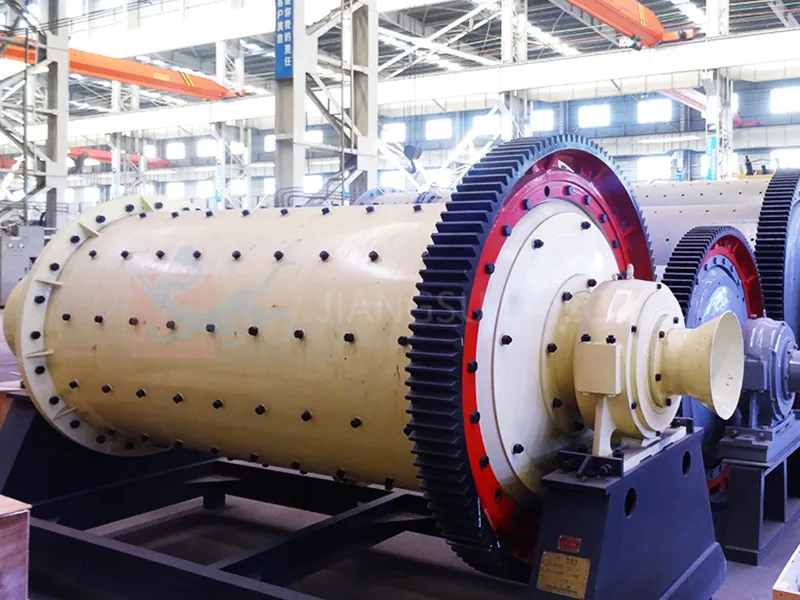

• Transmission device:

composed of a motor, a reducer, a coupling, etc., to provide power for the rotation of the ball mill cylinder. The design of the transmission device should ensure that the ball mill can operate stably and meet the speed requirements of different production needs.

• Lubrication system:

including lubricating oil pumps, oil pipes, filters, etc., to provide lubrication for key parts such as bearings and gears of the ball mill, reduce wear, and extend the life of the equipment.

• Control system:

Using advanced automatic control technology, the operating parameters of the ball mill are monitored and controlled in real time, such as speed, current, temperature, pressure, etc. The control system can realize remote operation and fault diagnosis, improve production efficiency and equipment reliability.

• Working principle:

The ball mill drives the cylinder to rotate through the motor. The grinding media (steel balls or steel segments) in the cylinder are lifted to a certain height under the action of centrifugal force and friction, and then fall down to impact and grind the material. The material is constantly hit, squeezed and rubbed by the grinding media in the cylinder, and is gradually crushed into fine powder. At the same time, the ventilation system in the ball mill introduces external air into the cylinder, taking away the heat and fine powder generated during the grinding process, so that the material maintains good fluidity and grinding effect in the cylinder. Finally, the ground material is discharged from the ball mill through the discharging device and enters the next process.

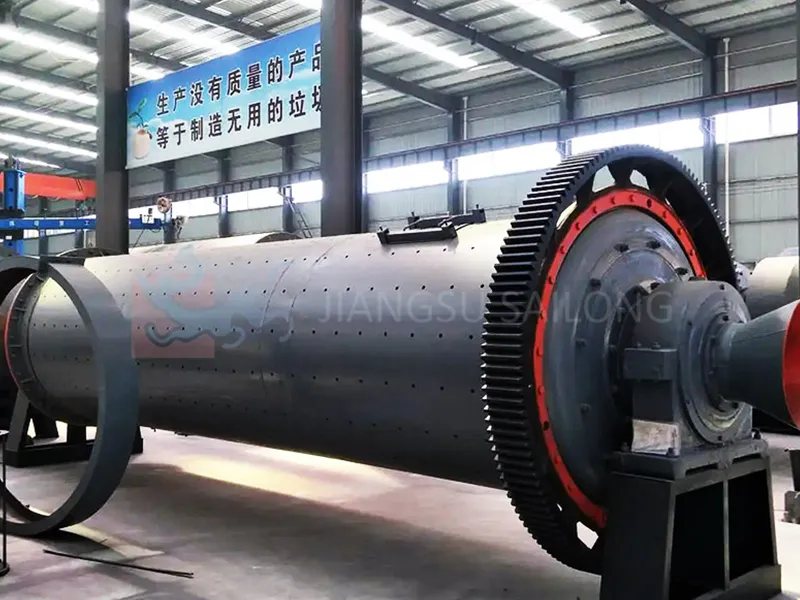

Advantages and characteristics

High yield:

• Optimized cylinder structure:

The diameter, length and speed of the cylinder are carefully designed to increase the residence time and grinding times of the material in the cylinder, thereby improving production efficiency. For example, the use of a cylinder design with a larger aspect ratio can increase the grinding path of the material and increase the output.

• Efficient transmission system:

The transmission device adopts high-power motor and high-efficiency reducer, which can provide sufficient power to make the ball mill run stably under high load. At the same time, by optimizing the transmission ratio and controlling the speed, the best grinding effect and output can be achieved.

• Reasonable grinding media ratio:

According to different material characteristics and production requirements, select the appropriate grinding media (steel balls or steel segments) size and ratio to improve grinding efficiency and output. For example, for materials with higher hardness, a mixture of larger diameter steel balls and smaller diameter steel segments can be used to improve crushing capacity and grinding effect.

High fineness:

• Fine discharging control:

The discharging device is equipped with high-precision screens or grading equipment, which can effectively control the discharging particle size and ensure that the fineness of the product meets the requirements. At the same time, by adjusting the parameters of the screen aperture or grading equipment, the production of products with different fineness can be achieved.

Advanced grinding technology: The ball mill adopts advanced grinding technology, such as micro-media grinding, high-energy grinding, etc., which can improve the degree of crushing and fineness of the material. In addition, by optimizing the motion trajectory and collision energy of the grinding medium, fine grinding of the material can be achieved to improve product quality.

• Good ventilation system:

The ventilation system can take away the heat and fine powder generated during the grinding process in time, and maintain the good fluidity and grinding effect of the material in the cylinder. At the same time, the ventilation system can also prevent the material from being over-grinded, and improve the fineness and uniformity of the product.

Energy saving and consumption reduction:

• Optimized structural design:

By optimizing the structural design of the ball mill, the weight and volume of the equipment can be reduced, and the manufacturing cost and operating energy consumption can be reduced. For example, the use of lightweight cylinder materials and optimized support structures can reduce the load and energy consumption of the equipment.

• Efficient transmission system:

The transmission device uses high-efficiency motors and reducers, which can improve energy utilization and reduce energy consumption. At the same time, by optimizing the transmission ratio and controlling the speed, the best grinding effect and energy consumption can be achieved.

• Reasonable grinding media management:

Regularly screen and replenish the grinding media to maintain the good state and ratio of the grinding media, improve grinding efficiency, and reduce energy consumption. At the same time, reasonable control of the filling rate of the grinding media can avoid increased energy consumption caused by overfilling.

Stable and reliable operation:

• High-quality manufacturing materials:

The ball mill's barrel, transmission device, bearings and other key components are made of high-quality steel and wear-resistant materials, with good strength and wear resistance, and can withstand high-load operation and long-term wear.

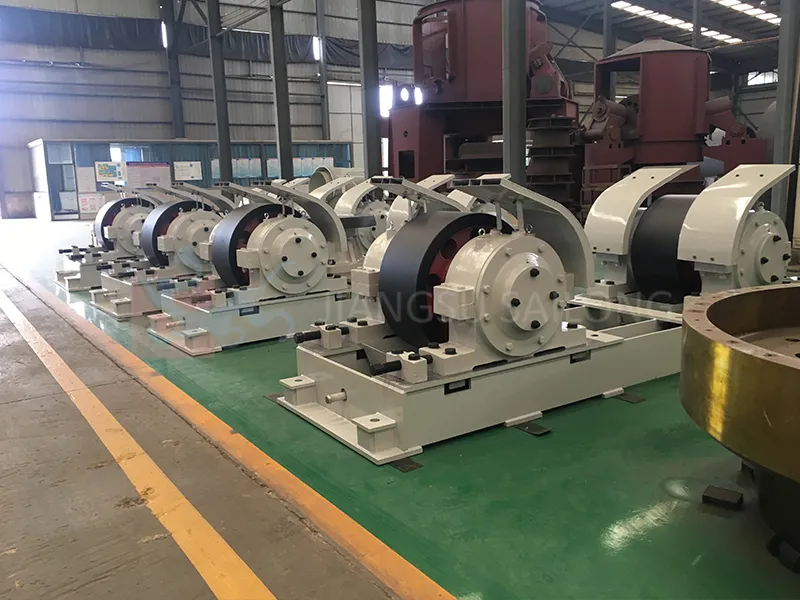

• Advanced manufacturing process:

Advanced manufacturing processes such as welding, heat treatment, processing, etc. are adopted to ensure the manufacturing quality and precision of the ball mill. At the same time, strict quality inspection and control are used to ensure the performance and reliability of the equipment.

• Perfect control system:

The control system adopts advanced automatic control technology to monitor and control the operating parameters of the ball mill in real time, timely discover and handle equipment failures, and ensure the stable operation of the equipment. At the same time, the control system can also realize remote operation and fault diagnosis to improve production efficiency and equipment reliability.

Easy operation and maintenance:

• Humanized design:

The operation interface of the ball mill is simple and intuitive, easy to operate and control. At the same time, the structural design of the equipment is reasonable, which is convenient for maintenance and overhaul. For example, the inspection door and observation hole of the barrel are reasonably set, which is convenient for operators to maintain and inspect the equipment.

• Automated control:

The control system adopts advanced automatic control technology to realize remote operation and automatic control of the ball mill. Operators can monitor and control the equipment in real time through the monitoring system in the control room, reducing the workload and risks of manual operation.

• Convenient maintenance:

The key components of the ball mill adopt modular design, which is easy to replace and repair. At the same time, the lubrication system and cooling system of the equipment adopt centralized oil supply and automatic control, which reduces the workload and cost of maintenance.
