Long bag pulse dust collector

Category：

Dust Collector
Specifications：

There are 32, 64, 96 and 128 kinds of filter bags in each room. The diameter of filter bag is 130mm, and the length of filter bag is 2450mm and 3600mm
Characteristic：

The off-line cleaning method has the advantages of large cleaning energy, good cleaning effect, low system resistance, long service life of filter bag and high dust removal efficiency
Application：

Suitable for high concentration dustremoval. The dust concentration ofinlet gas is up to 1000g/Nm³.
WhatsApp：

+8613705101208/+8613805102308
Release time：

2024-10-31 15:15:52

INQUIRY

Detailed Description

Popular Models

If you have any questions, please feel free to contact customer service, customer service is online 24 hours a day. E-mail us: robin@cnsailong.com/cliff@cnsailong.com WhatsApp/WeChat:+8613705101208/+8613805102308

Model	SLDM168-5	SLDM168-6	SLDM168-7	SLDM168-8	SLDM168-9
Air volume(10^4 m³/h)	9.6~12.0	11.52~14.4	13.44~16.8	15.36~19.2	17.28~21.6
Total filter area(m²)	2000	2400	2800	3200	3600
G.W. (t)	50	60	70	80	90
Chamber	5	6	7	8	9
Filter bag Qty.	840	1008	1176	1344	1512
Resistance(Pa)	1200~1600
Air consumption(m³/min)	2~4
Discharge Density(mg/N m³)	less than 50
Air leakage (%)	less than 3
Pressure	0.2~0.4

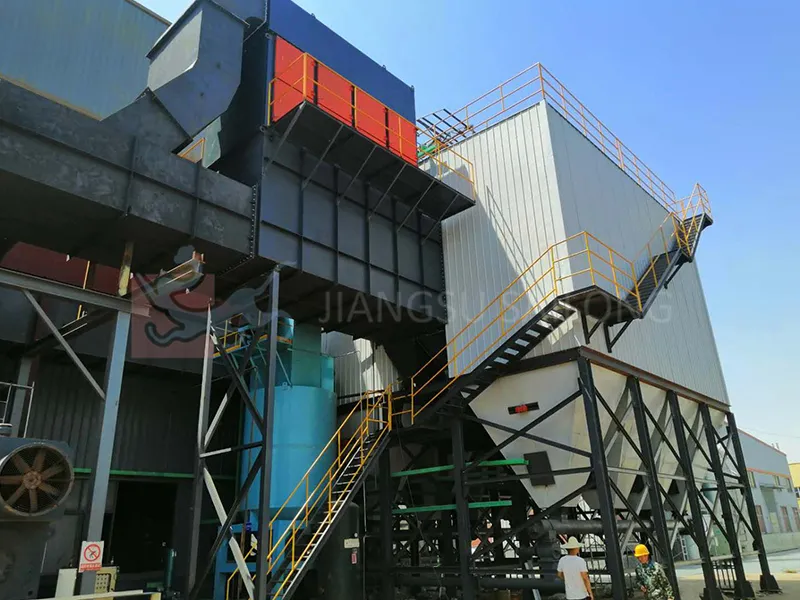

Large-scale line-spray pulse long bag dust collector	Large-scale line-spray pulse long bag dust collector

Introduction

It has the advantages of section reverse flowing and pulse dedusting, which makes up for deficiency of intensity during sub-room and reabsorbing in pulse cleaning dust. The collector improves the efficiency，largely reduces frequency and uses the submerged pulse valve to reduce air pressure and energy consumption, prolong the service life of using filter bag and pulse valve, and enhance combined property greatly.

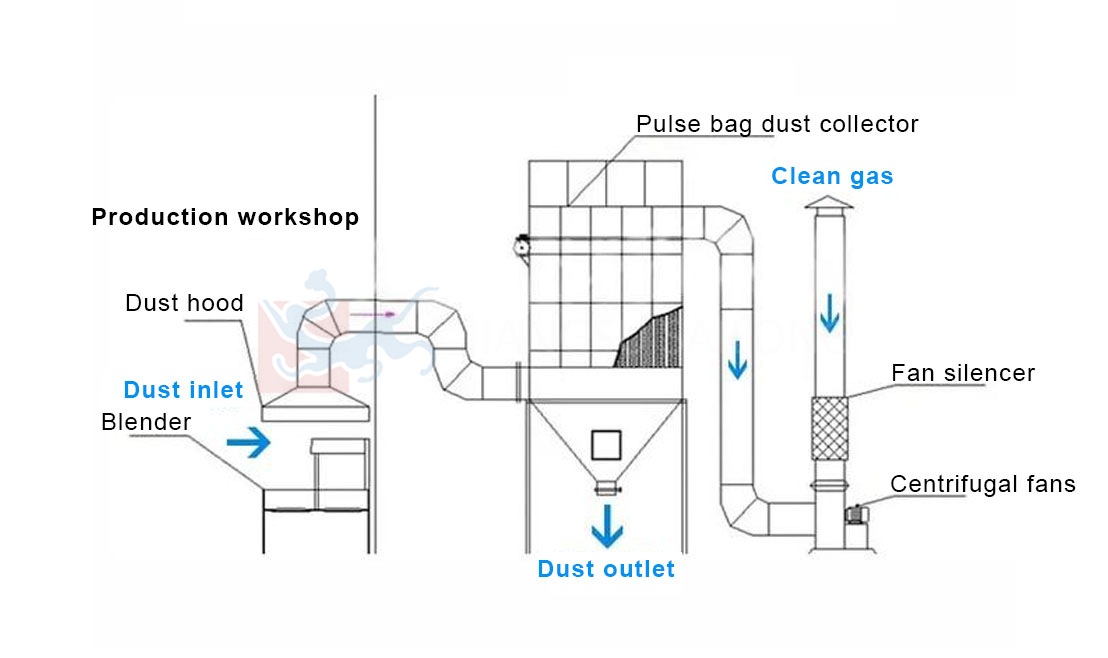

Long bag pulse dust collector

Applications materials of Dust Collector

It is not only widely used in building materials, metallurgy, petrochemical, food, iron and steel, coal, but also used for purifying dusty gas within room temperature or high temperature and formed in wasted electricity and industrial stoves and recycling powdery materials.

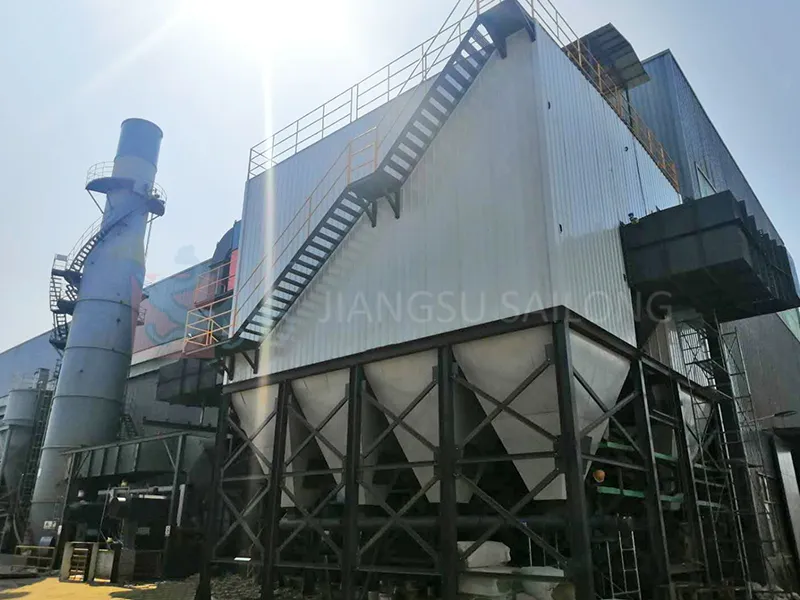

Large-scale line-spray pulse long bag dust collector Long bag pulse dust collector

Parameters

Technical Parameter		Model
Technical Parameter		*SLDM160-25**	*SLDM160-26**	*SLDM160-27**	*SLDM160-28**	*SLDM160-29**	*SLDM176-25**	*SLDM176-26**	*SLDM176-27**	*SLDM176-28**	*SLDM176-29**
Air volume(m³/h)		23.04~28.8	27.65~34.56	32.5~40.32	36.86~28.8	41.47~51.84	25.34~31.84	30.41~38.02	35.48~44.35	40.55~50.68	45.62~57.02
Total filter area(m²)		4800	5760	6720	7680	8640	5305	6336	7392	8448	9504
G.Weight(T)		138	165	193	220	248	150	180	210	240	270
Chamber(pcs)		10	12	14	16	18	10	12	14	16	18
Filter bag	Quantity(pcs)	1600	1920	2240	2560	2880	1760	2112	2464	2186	3186
Filter bag	Specitication(inch)	Ф160*6000
Pulse Valve	Quantity(pcs)	100	120	140	160	180	110	132	154	176	198
Resistance(Pa)		≤1500
Filtering wind speed(m/mi)		If the user needs, according to particular case is lower or higher
The entrance concentration (g/N m³)		≤100
Air leakage rate(%)		≤3
Pressure(Mpa)		0.3~0.5
