What are the common applications of Ball Mill?

2023-04-12 22:13:32

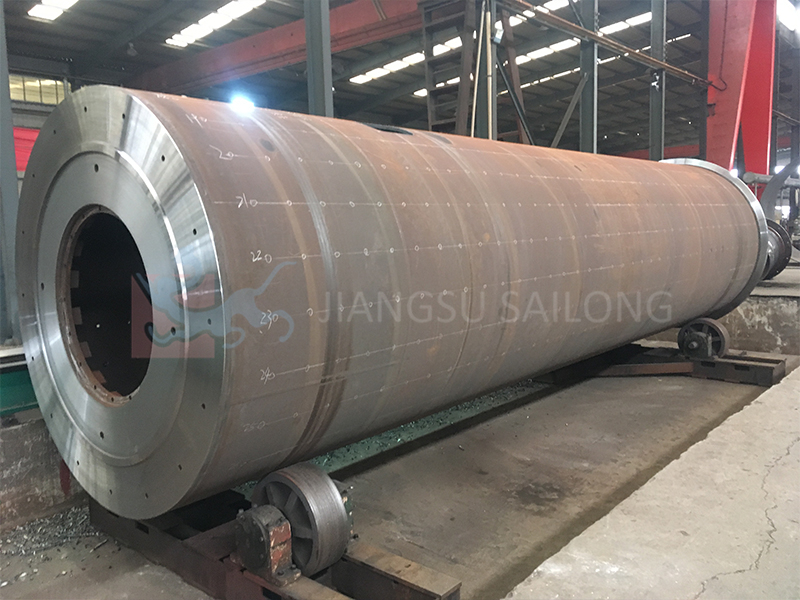

Ball Mill is a type of grinder used to grind and blend materials into fine powders. Here are some of its common applications:

1. Mining Industry

- Ore Beneficiation: In the mining of metals such as gold, silver, copper, and iron, ball mills are used to grind the ores into fine particles. This grinding process is essential for liberating the valuable minerals from the gangue (the worthless rock material associated with the ore). For example, in a copper mine, the ore is first crushed and then fed into a ball mill to reduce it to a fine powder. This powder is then processed through flotation or other separation methods to extract the copper minerals.

- Production of Industrial Minerals: Ball mills are also used to process industrial minerals like limestone, gypsum, and feldspar. Limestone is ground to produce powdered limestone, which is used in a variety of applications such as in the construction industry for making cement, in agriculture as a soil conditioner, and in the chemical industry for various chemical reactions.

2. Cement Production

- Grinding of Clinker and Raw Materials: Cement is produced by grinding clinker (a nodular material produced by heating limestone and clay) along with other additives such as gypsum. Ball mills play a crucial role in this process. They grind the clinker to a fine powder, which is the main component of cement. The fineness of the ground clinker affects the setting time and strength of the cement. In addition to clinker, ball mills are also used to grind the raw materials (limestone, clay, etc.) before the clinker - making process to ensure a homogeneous mixture and proper chemical reactions during the kiln - firing process.

3. Chemical and Pharmaceutical Industries

- Chemical Synthesis: In the chemical industry, ball mills are used for grinding and mixing chemicals to the right particle size for various chemical reactions. For example, in the production of catalysts, ball mills can be used to grind the precursor materials to a fine powder to increase the surface area and reactivity of the catalyst. In the pharmaceutical industry, ball mills are used to grind active pharmaceutical ingredients (APIs) to a fine powder for better dissolution and bioavailability. They are also used to blend APIs with excipients (inactive substances used in drug formulations) to prepare tablets, capsules, or other dosage forms.

4. Ceramics and Glass Industries

- Ceramics Production: In the ceramics industry, ball mills are used to grind raw materials such as clay, feldspar, quartz, and other minerals. These ground materials are then mixed and formed into ceramic products. The grinding process helps to achieve a uniform particle size, which is essential for the proper sintering and strength of the ceramic. In the glass industry, ball mills are used to grind batch materials (such as sand, soda ash, and limestone) to a fine powder before the melting process to ensure a homogeneous glass melt and good quality of the glass products.

5. Paint and Pigment Industries

- Grinding of Pigments: In the paint and pigment industries, ball mills are used to grind pigments to a fine powder. The fineness of the pigment powder affects the color intensity, hiding power, and dispersibility of the pigment in the paint. Ball mills can also be used to mix pigments with other paint components such as binders, solvents, and additives to produce a well - blended paint formulation.
